[LU-1365] Implement ldiskfs LARGEDIR support for e2fsprogs

• Status: Resolved
• Project: Lustre
• Affects Version/s: Lustre 2.3.0
• Fix Version/s: Lustre 2.12.4
• Type: New Feature
• Priority: Minor
• Reporter: Andreas Dilger
• Assignee: Artem Blagodarenko (Inactive)
• Resolution: Fixed
• Labels: LTS12, e2fsprogs, ldiskfs, patch
• Story Points: 3

Description

This INCOMPAT_LARGEDIR feature allows larger directories to be created in ldiskfs, both with directory sizes over 2GB and and a maximum htree depth of 3 instead of the current limit of 2. These features are needed in order to exceed the current limit of approximately 10M entries in a single directory. The INCOMPAT_LARGEDIR feature was added to ldiskfs as part of the pdirops LU-50 coding, but was not part of that project. As there is currently no mke2fs, e2fsck, or tune2fs support for INCOMPAT_LARGEDIR, this feature is disabled by default when creating a new ldiskfs filesystem as it would otherwise make the filesystem unrecoverable in the case that e2fsck needs to be run on it.

Tasks that need to be completed before INCOMPAT_LARGEDIR can be used:

• add support for the INCOMPAT_LARGEDIR and "large_dir" features to mke2fs/tune2fs
• add conf-sanity.sh test LARGEDIR and 3-level htree for local ldiskfs with 1kB blocksize up to 100k entries with 255-byte names (3-level exceeded at 48k entries). This might be done using a smaller number of hard-linked inodes (nlink_max = 65000), to avoid overhead of accessing and caching a large number of different inodes.
• add parallel-scale.sh test LARGEDIR and >2GB directories with Lustre using 255-byte names and 10M entries (2GB exceeded at 4M entries, 4GB exceeded at 8M entries). This might be done using a smaller number of hard-linked inodes (nlink_max = 65000), to avoid overhead of accessing and caching a large number of different inodes.
• e2fsck support for 3-level htree
• e2fsck support for directories larger than 2GB (using i_size_hi consistently for S_IFDIR() inodes)
• e2fsprogs regression test test for 3-level/2GB+ htree e2fsck, corruptions
• e2fsprogs add LARGEDIR feature to "tests/f_random_corruption"
• port the ext4-large-dir.patch with the INCOMPAT_LARGEDIR features (>2GB, 3-level htree) to the upstream kernel and submit to linux-ext4 list for review
• submit e2fsprogs patches to linux-ext4 list for review
• solicit testing of feature from community
• some time after e2fsprogs is released and available for download, a patch is needed to enable large_dir on new filesystems with mkfs.lustre
• updates to the user manual and release notes to describe how to enable the large_dir feature with tune2fs

Issue Links

• is duplicated by: LU-896 change e2fsprogs to make it allow dir...
• is duplicated by: LU-7932 Patch e2fsprogs to allow set special ...
• is related to: LU-50 pdirops patch for ldiskfs
• is related to: LU-11915 conf-sanity test 115 is skipped or hangs
• is related to: LU-14345 e2fsck of very large directories is b...
• is related to: LU-14734 enable large_dir on existing MDTs
• is related to: LU-11546 enable large_dir support for MDTs
• is related to: LU-8974 Сhange force_over_256tb lustre mount ...

Comments

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: http://review.whamcloud.com/22008
Subject: LU-1365 e2fsprogs: enable large directroy support in tools.
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: bae7b74bf24ce86ec28af322a3d9c75a21c12a7a

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: http://review.whamcloud.com/22009
Subject: LU-1365 tests: LARGEDIR and 3-level htree for local ldiskfs
Project: fs/lustre-release
Branch: master
Current Patch Set: 1
Commit: 7c4b67f0a09903efa9656d161475fe30c70a80c2

[Artem Blagodarenko (Inactive)]

add support for the INCOMPAT_LARGEDIR and "large_dir" features to mke2fs/tune2fs

This patch is enough to enable large_dir. http://review.whamcloud.com/22008
I patched tools this way before starting tests

add conf-sanity.sh test LARGEDIR and 3-level htree for local ldiskfs with 1kB blocksize up to 100k entries with 255-byte names (3-level exceeded at 48k entries). This might be done using a smaller number of hard-linked inodes (nlink_max = 65000), to avoid overhead of accessing and caching a large number of different nodes.

Test 100 in http://review.whamcloud.com/22009

test failed if no large_dir enabled

n: creating hard link `/mnt/lustre/d100.conf-sanity/Kv74Cdj3FnDyJrJ9gbgqM0GIrlWtGKKTxTO4N5usmjXjRkDk3DKDhdPqjTq5Fw8JgKh5rADZMb5omdc2ySMqUURJUfIcjE5O2FSTqs2WNtOQKCNqK8vnLM5wawDd26Txd27GwLEagRRA6KipNNUj4NLb711dvwt46hBGuvJfeiN6iir9NMjqiJfcLfXQPOYwheMKBVAtjwauj5sdi3zSdSSzTeyCUIka7p3MHYAiPduo90fQWVA2GPtbvMVJzp0': No space left on device

and passed with option "large_dir".

>add parallel-scale.sh test LARGEDIR and >2GB directories with Lustre using 255-byte names and 10M entries (2GB exceeded at 4M entries, 4GB exceeded at 8M entries). This might be done using a smaller number of hard-linked inodes (nlink_max = 65000), to avoid overhead of accessing and caching a large number of different nodes.

Andreas, I can't find the reasons we need add such test in parallel-scale.sh. mdtest execution can help to estimate performance. I created functional test that shows the possibility of creating " >2GB directories with Lustre using 255-byte names and 10M entries" but believe parallel-scale.sh is not the best place for it. So I placed it to config_sanity.sh (test_101).

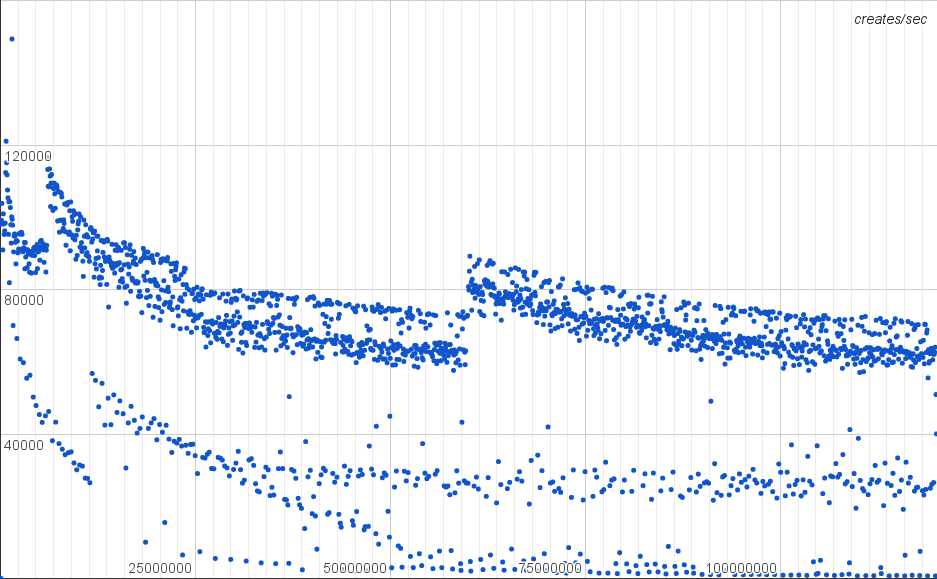

config_sanity.sh test_101 creates 12M hard links. Here is creation rates on my local testing system:

Testing system on virtual machine is not ideal, so we tested 120M hard links creations on cluster. But ldiskfs was used (this exclude all other code except ldiskfs and can show its possible troubles). Here is graph of creation rates:

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: http://review.whamcloud.com/22384
Subject: LU-1365 e2fsprogs: enable large directroy support in e2fsck.
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: d1e6a1f72923d59c42bf9d74c850b9f32c01f462

[Gerrit Updater]

Niu Yawei ([e-mail]) uploaded a new patch: http://review.whamcloud.com/23831
Subject: LU-1365 resize2fs: clear uninit if allocating from new group
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: a12ae87de615f78bd663378d8978a93a8d35445a

[Gerrit Updater]

Anonymous Coward ([e-mail]) uploaded a new patch: https://review.whamcloud.com/26311
Subject: LU-1365 resize2fs: clear uninit if allocating from new group
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: 2bb22e1bc0af6a2dbb213f3af79325d306cc498a

[Gerrit Updater]

Anonymous Coward ([e-mail]) uploaded a new patch: https://review.whamcloud.com/26312
Subject: LU-1365 e2fsprogs: enable large directroy support in tools
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: c4c581ccd003af1e40032e6352f45c6b546d1334

[Gerrit Updater]

Anonymous Coward ([e-mail]) uploaded a new patch: https://review.whamcloud.com/26313
Subject: LU-1365 e2fsprogs: enable large directroy support in e2fsck
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: 53effd14b09e128f2f4450e6bee206d1c7341b0d

[Artem Blagodarenko (Inactive)]

Andreas, Do I need to resend ext4(fsprogs) patches again to the email list? I see new patches are uploaded there, but don't understand the reason. Thanks.

[Gerrit Updater]

Andreas Dilger ([e-mail]) merged in patch https://review.whamcloud.com/23831/
Subject: LU-1365 resize2fs: clear uninit if allocating from new group
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set:
Commit: 6ba8ad101d4a8331b8131abb56ea821b77b7d2b0

[Andreas Dilger]

This landed to upstream e2fsprogs-1.44, and kernel 4.14.

[Gerrit Updater]

Wang Shilong ([e-mail]) uploaded a new patch: https://review.whamcloud.com/30912
Subject: LU-1365 e2fsprogs: add support for 3-level htree
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: 1140574de77dad5aeca7b3688aa866d6921c97a3

[Gerrit Updater]

Wang Shilong ([e-mail]) uploaded a new patch: https://review.whamcloud.com/30913
Subject: LU-1365 tests: 3 level hash tree test
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: ad3eabbbbb5305cc1006db9ec11a66cba795a228

[Artem Blagodarenko (Inactive)]

adilger, I have attached logs for conf_sanity_124 and conf_sanity_125 just. Test session in my local environment. They are passed. I also  installed packages that maloo built, and test started successfully (I haven't wait until it finished, but they are not failed in start like in maloo).

I have no idea how to fix maloo test session. Do you have any suggestions?

[Andreas Dilger]

Reopen this issue while the patch is still unlanded.

There also appears to be an issue with e2fsck and directories over 2GB:

Pass 1: Checking inodes, blocks, and sizes
Inode 252 is too big.  Truncate? no

Block #524289 (552395) causes directory to be too big.  IGNORED.
Block #524290 (552396) causes directory to be too big.  IGNORED.
Block #524291 (552397) causes directory to be too big.  IGNORED.
Block #524292 (552398) causes directory to be too big.  IGNORED.
Block #524293 (552399) causes directory to be too big.  IGNORED.

[Dongyang Li]

Artem, Looks like in process_block() from pass1, the limit of dir size is still 2GB.

with large_dir we could end up with a dir larger than 2GB, like the one created in conf_sanity test_125.

I also noticed that stat and ls from debugfs is showing the size of the dir as a negative value for the same dir,

the reason is we are just using inode->i_size rather than EXT2_I_SIZE(inode).

Can you please fix them in e2fsprogs upstream? Also please push a patch to gerrit for the master-lustre branch so we can land it from our side.

Thanks

DY

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: https://review.whamcloud.com/33756
Subject: LU-1365 tests: createmany outputs stat after 2 seconds
Project: fs/lustre-release
Branch: master
Current Patch Set: 1
Commit: b66dd7a12ca6ef3290e09d2baabe2361c758f2e3

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: https://review.whamcloud.com/33757
Subject: LU-1365 utils: allow set block size for ldiskfs backend
Project: fs/lustre-release
Branch: master
Current Patch Set: 1
Commit: 1fc5bde1a96d249febd15e5c96e33d1b4c9b64ce

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: https://review.whamcloud.com/33813
Subject: LU-1365 e2fsck: allow to check >2GB sized directory
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: 7e77372d97aad810b651e680220d8168cd5bf54c

[Gerrit Updater]

Artem Blagodarenko ([e-mail]) uploaded a new patch: https://review.whamcloud.com/33814
Subject: LU-1365 debugfs: output large directory size
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set: 1
Commit: d598fae184f1abdfd47b8396f21db217238ce220

[Gerrit Updater]

Andreas Dilger ([e-mail]) merged in patch https://review.whamcloud.com/33814/
Subject: LU-1365 debugfs: output large directory size
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set:
Commit: b3267b9f4f9037b84fa83e1296e7dad508a592ba

[Gerrit Updater]

Andreas Dilger ([e-mail]) merged in patch https://review.whamcloud.com/33813/
Subject: LU-1365 e2fsck: allow to check >2GB sized directory
Project: tools/e2fsprogs
Branch: master-lustre
Current Patch Set:
Commit: c5de396607efa2032bc32f7aa607b38d9e82dc6b

[Artem Blagodarenko (Inactive)]

Test conf_sanity 125 successfully passed on my local environment. It's took 1,5 hours. Full logs are attached to this issue.
Name creation rate didn't reduced dramatically. From

 total: 60000 link in 119.82 seconds: 500.76 ops/second

in first iteration. To

total: 60000 link in 123.89 seconds: 484.31 ops/second

I belive previous performance drop could be because we sent full directory name to createmany utility and lookup require more time for large directory. This time createmany acts on the current directory.

[Gerrit Updater]

Oleg Drokin ([e-mail]) merged in patch https://review.whamcloud.com/33757/
Subject: LU-1365 utils: allow set block size for ldiskfs backend
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 5f674667bfd1ab9a0e47d9f03f3e7eab37eb8e17

[Gerrit Updater]

Oleg Drokin ([e-mail]) merged in patch https://review.whamcloud.com/22009/
Subject: LU-1365 tests: LARGEDIR and 3-level htree for local ldiskfs
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 8048e216c16fa403da6fa2a755df8f718ab3105d

[Gerrit Updater]

Oleg Drokin ([e-mail]) merged in patch https://review.whamcloud.com/33756/
Subject: LU-1365 tests: createmany outputs stat after 2 seconds
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 46125b6d9627d006087dfcc727e2cff0954e78c8

[Peter Jones]

Landed for 2.13

[Colin Faber [X] (Inactive)]

should this be closed?

[Peter Jones]

We usually leave tickets as RESOLVED rather than CLOSED because then the ticket can be updated when needed (if landed to maintenance branches, say) without the extra email generated by having to go through the states REOPEN then RESOLVED then CLOSED again.

[Colin Faber [X] (Inactive)]

Got it. How do you guys keep track of where it's and when this / tickets like this are ready to close?

[Peter Jones]

We just consider RESOLVED to be the primary task is complete.

[Gerrit Updater]

Minh Diep ([e-mail]) uploaded a new patch: https://review.whamcloud.com/36778
Subject: LU-1365 utils: allow set block size for ldiskfs backend
Project: fs/lustre-release
Branch: b2_12
Current Patch Set: 1
Commit: d412d6c6e41446303a2244c46f9bfd3330926b45

[Gerrit Updater]

Minh Diep ([e-mail]) uploaded a new patch: https://review.whamcloud.com/36779
Subject: LU-1365 tests: LARGEDIR and 3-level htree for local ldiskfs
Project: fs/lustre-release
Branch: b2_12
Current Patch Set: 1
Commit: 76bec4f7fdd0ec1f85863f13b5cff248d5676fc3

[Gerrit Updater]

Oleg Drokin ([e-mail]) merged in patch https://review.whamcloud.com/36778/
Subject: LU-1365 utils: allow set block size for ldiskfs backend
Project: fs/lustre-release
Branch: b2_12
Current Patch Set:
Commit: c89aa6edccab2d20d44e52af1e5a16e8d9d39fe9
