Bobijam
Could you please advise on this one?
Thanks
Peter
|
|
How large are the files being tested? One stripe or multiple stripes per file? It surprises me that Lustre is slower than NFS, but I guess that isn't directly relevant for the problem itself.
It would be useful to collect +rpctrace +dlmtrace +vfstrace +reada debug logs on the client for the parallel and serial runs. That would allow us to see if there are duplicate RPCs being sent. This would be most useful with a 2.5.0 client. It may be that Jinshan's client-side single-threaded performance patches would help improve the overall performance, but it isn't totally clear if they would affect the parallel vs. serial behaviour.
|
|
They are 2GB, single-striped files. The client nodes have 4GB of RAM and are mounting with the localflock option.
I'll work on getting the debug logs.
|
|
It seems really terrible performance to be reading a 2GB file in 151s (=13.5MB/s) in the serial case, or even 216s (=9.5MB/s) in the parallel case. It seems like something else is broken in this filesystem that is causing everything to run slowly? Even my 8-year-old home system runs this fast.
|
|
Note when I filtered on +rpctrace +dlmtrace +vfstrace +reada I got no events so I have given the full logs....
Sorry.
|
|
This is using my desktop which is a lustre 2.5.1 client.
root@deskpro21498:/tmp/results# grep copied /tmp/results/ser
/tmp/results/01_out_ser:2147483648 bytes (2.1 GB) copied, 19.4224 s, 111 MB/s
/tmp/results/02_out_ser:2147483648 bytes (2.1 GB) copied, 1.1007 s, 2.0 GB/s
/tmp/results/03_out_ser:2147483648 bytes (2.1 GB) copied, 1.03958 s, 2.1 GB/s
/tmp/results/04_out_ser:2147483648 bytes (2.1 GB) copied, 1.03101 s, 2.1 GB/s
/tmp/results/05_out_ser:2147483648 bytes (2.1 GB) copied, 1.03045 s, 2.1 GB/s
/tmp/results/06_out_ser:2147483648 bytes (2.1 GB) copied, 1.03191 s, 2.1 GB/s
/tmp/results/07_out_ser:2147483648 bytes (2.1 GB) copied, 1.0305 s, 2.1 GB/s
/tmp/results/08_out_ser:2147483648 bytes (2.1 GB) copied, 1.03164 s, 2.1 GB/s
/tmp/results/09_out_ser:2147483648 bytes (2.1 GB) copied, 1.03211 s, 2.1 GB/s
/tmp/results/10_out_ser:2147483648 bytes (2.1 GB) copied, 1.0314 s, 2.1 GB/s
/tmp/results/11_out_ser:2147483648 bytes (2.1 GB) copied, 1.03315 s, 2.1 GB/s
/tmp/results/12_out_ser:2147483648 bytes (2.1 GB) copied, 1.03305 s, 2.1 GB/s
/tmp/results/13_out_ser:2147483648 bytes (2.1 GB) copied, 1.03047 s, 2.1 GB/s
/tmp/results/14_out_ser:2147483648 bytes (2.1 GB) copied, 1.03324 s, 2.1 GB/s
/tmp/results/15_out_ser:2147483648 bytes (2.1 GB) copied, 1.03284 s, 2.1 GB/s
/tmp/results/16_out_ser:2147483648 bytes (2.1 GB) copied, 1.03156 s, 2.1 GB/s
/tmp/results/17_out_ser:2147483648 bytes (2.1 GB) copied, 1.03013 s, 2.1 GB/s
/tmp/results/18_out_ser:2147483648 bytes (2.1 GB) copied, 1.03125 s, 2.1 GB/s
/tmp/results/19_out_ser:2147483648 bytes (2.1 GB) copied, 1.03179 s, 2.1 GB/s
/tmp/results/20_out_ser:2147483648 bytes (2.1 GB) copied, 1.02893 s, 2.1 GB/s
root@deskpro21498:/tmp/results# grep copied /tmp/results/par
/tmp/results/01_out_par:2147483648 bytes (2.1 GB) copied, 28.5889 s, 75.1 MB/s
/tmp/results/02_out_par:2147483648 bytes (2.1 GB) copied, 28.535 s, 75.3 MB/s
/tmp/results/03_out_par:2147483648 bytes (2.1 GB) copied, 28.5606 s, 75.2 MB/s
/tmp/results/04_out_par:2147483648 bytes (2.1 GB) copied, 28.5644 s, 75.2 MB/s
/tmp/results/05_out_par:2147483648 bytes (2.1 GB) copied, 28.5557 s, 75.2 MB/s
/tmp/results/06_out_par:2147483648 bytes (2.1 GB) copied, 28.5399 s, 75.2 MB/s
/tmp/results/07_out_par:2147483648 bytes (2.1 GB) copied, 28.5578 s, 75.2 MB/s
/tmp/results/08_out_par:2147483648 bytes (2.1 GB) copied, 28.5544 s, 75.2 MB/s
/tmp/results/09_out_par:2147483648 bytes (2.1 GB) copied, 28.5705 s, 75.2 MB/s
/tmp/results/10_out_par:2147483648 bytes (2.1 GB) copied, 28.5436 s, 75.2 MB/s
/tmp/results/11_out_par:2147483648 bytes (2.1 GB) copied, 28.5596 s, 75.2 MB/s
/tmp/results/12_out_par:2147483648 bytes (2.1 GB) copied, 28.5437 s, 75.2 MB/s
/tmp/results/13_out_par:2147483648 bytes (2.1 GB) copied, 28.5611 s, 75.2 MB/s
/tmp/results/14_out_par:2147483648 bytes (2.1 GB) copied, 28.5543 s, 75.2 MB/s
/tmp/results/15_out_par:2147483648 bytes (2.1 GB) copied, 28.5604 s, 75.2 MB/s
/tmp/results/16_out_par:2147483648 bytes (2.1 GB) copied, 28.5546 s, 75.2 MB/s
/tmp/results/17_out_par:2147483648 bytes (2.1 GB) copied, 28.5358 s, 75.3 MB/s
/tmp/results/18_out_par:2147483648 bytes (2.1 GB) copied, 28.5552 s, 75.2 MB/s
/tmp/results/19_out_par:2147483648 bytes (2.1 GB) copied, 28.5478 s, 75.2 MB/s
/tmp/results/20_out_par:2147483648 bytes (2.1 GB) copied, 28.5414 s, 75.2 MB/s
|
|
Can I add any information ?
Can the problem be reproduced else where ?
|
|
Hi James,
Can you confirm how large the original file was? Also can you double check your debug settings? When I run it on a Lustre 2.1.5 VM I get a ton of debug data.
sysctl lnet.debug="+rpctrace +dlmtrace +vfstrace +reada"
lnet.debug = ioctl neterror warning dlmtrace error emerg ha rpctrace vfstrace reada config console
Here's the script I used:
#!/bin/bash
lctl clear
lctl debug_daemon start /scratch/debug_file 2048
echo 3 > /proc/sys/vm/drop_caches
lctl mark parallel read start
for x in 1 2 3 4 5; do dd if=/lustre/pfs/client/testfile bs=4M of=/dev/null & done
wait
lctl mark parallel read done
echo 3 > /proc/sys/vm/drop_caches
lctl mark serial read start
for x in 1 2 3 4 5; do dd if=/lustre/pfs/client/testfile bs=4M of=/dev/null ; done
lctl mark serial read done
lctl debug_daemon stop
lctl df /scratch/debug_file > /scratch/debug_file.out
I was able to reproduce the slow down you mentioned. I'll attach the debug logs that I got.
parallel:
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.40159 s, 59.6 MB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.40117 s, 59.6 MB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.39914 s, 59.6 MB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.39789 s, 59.6 MB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.39852 s, 59.6 MB/s
serial:
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 4.57006 s, 57.4 MB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 0.0536567 s, 4.9 GB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 0.046017 s, 5.7 GB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 0.0454 s, 5.8 GB/s
62+1 records in
62+1 records out
262144000 bytes (262 MB) copied, 0.0453329 s, 5.8 GB/s
|
|
In the most recent results with the 2.5.0 client (we don't have a 2.5.1 yet?) the parallel reads take only 28.5s, while the serial reads take 39s in total, so the parallel reads are faster in aggregate than serial reads, though the single serial read is faster (19.4s) than any of the parallel reads. These results also are more in line with NFS (19.9s for the first serial read, 1.3s for each later read).
I updated the script a bit and ran it on my 2.4.0 x86_64 2-core 4-thread client, 2.4.1 server:
#!/bin/sh
FILE=/myth/tmp/100M # previously created
OST=myth-OST0000
lctl set_param ldlm.namespaces.$OST*.lru_size=clear
lctl set_param llite.*.stats=0 osc.$OST*.rpc_stats=0
for i in $(seq -w 1 20); do
(time dd if=$FILE bs=4M of=/dev/null ) > /tmp/par_${i}.out 2>&1 &
done
wait
lctl get_param llite.*.stats osc.$OST*.rpc_stats | tee /tmp/par_stats.out
lctl set_param ldlm.namespaces.$OST*.lru_size=clear
lctl set_param llite.*.stats=0 osc.$OST*.rpc_stats=0
for i in $(seq -w 1 20); do
(time dd if=$FILE bs=4M of=/dev/null ) > /tmp/ser_${i}.out 2>&1
done
lctl get_param llite.*.stats osc.$OST*.rpc_stats | tee /tmp/par_stats.out
This produced the following from rpc_stats, which showed that there are not multiple RPCs being sent:
The time profile is as I would expect, shorter single time for serial but longer total time (no parallelism), and a shorter total time for parallel (runtime happens in parallel):
SERIAL
real 0m9.657s sys 0m1.556s
real 0m0.284s sys 0m0.281s
real 0m0.244s sys 0m0.241s
real 0m0.377s sys 0m0.368s
real 0m0.202s sys 0m0.201s
real 0m0.207s sys 0m0.195s
real 0m0.200s sys 0m0.196s
real 0m0.210s sys 0m0.209s
real 0m0.198s sys 0m0.197s
real 0m0.197s sys 0m0.194s
real 0m0.198s sys 0m0.196s
real 0m0.202s sys 0m0.198s
real 0m0.295s sys 0m0.291s
real 0m0.164s sys 0m0.162s
real 0m0.163s sys 0m0.162s
real 0m0.162s sys 0m0.160s
real 0m0.162s sys 0m0.160s
real 0m0.162s sys 0m0.159s
real 0m0.164s sys 0m0.160s
real 0m0.162s sys 0m0.160s
PARALLEL
real 0m12.817s sys 0m0.918s
real 0m12.816s sys 0m1.018s
real 0m12.804s sys 0m0.837s
real 0m12.791s sys 0m0.865s
real 0m12.783s sys 0m0.922s
real 0m12.768s sys 0m0.866s
real 0m12.773s sys 0m0.888s
real 0m12.773s sys 0m0.968s
real 0m12.761s sys 0m0.842s
real 0m12.741s sys 0m0.897s
real 0m12.734s sys 0m0.856s
real 0m12.718s sys 0m0.869s
real 0m12.700s sys 0m0.896s
real 0m12.711s sys 0m0.933s
real 0m12.685s sys 0m0.931s
real 0m12.656s sys 0m0.854s
real 0m12.669s sys 0m0.970s
real 0m12.663s sys 0m0.848s
real 0m12.655s sys 0m0.947s
real 0m12.649s sys 0m0.880s
|
|
Just as a note, I think I can see the problem however I am busy upgrading a lustre file system... and I want to ensure that my communication is clear, apologies for the delay.
|
|
I have a basic C program to do a while(read()) style loop until EOF on an ~800Mb file with varying buffer sizes. I tested this on a lustre, tmpfs and nfs using a mix of block sizes and 1, 4 and 32 concurrent copies. For example on lustre with 4 copies:
jkb@sf-7-1-02[work/benchmarks] fn=/lustre/scratch110/srpipe/references/Human/default/all/bowtie/human_g1k_v37.fasta.1.ebwt; for i in `seq 8 30`;do bs=$(perl -e "print 2 ** $i");echo -n "$bs";(for x in `seq 1 4`;do ./linear2 $fn & done) | grep Took|tail -1;done
256 Took 243.905528 seconds
512 Took 121.146812 seconds
1024 Took 62.789902 seconds
2048 Took 30.558433 seconds
4096 Took 14.908553 seconds
8192 Took 7.506444 seconds
16384 Took 3.727981 seconds
32768 Took 1.864213 seconds
65536 Took 0.882102 seconds
131072 Took 0.468359 seconds
262144 Took 0.405715 seconds
524288 Took 0.411299 seconds
1048576 Took 0.420036 seconds
2097152 Took 0.470832 seconds
4194304 Took 0.680612 seconds
8388608 Took 0.776593 seconds
16777216 Took 0.752007 seconds
33554432 Took 0.765050 seconds
67108864 Took 0.741756 seconds
134217728 Took 0.712213 seconds
268435456 Took 0.677054 seconds
536870912 Took 0.753955 seconds
1073741824 Took 0.931833 seconds

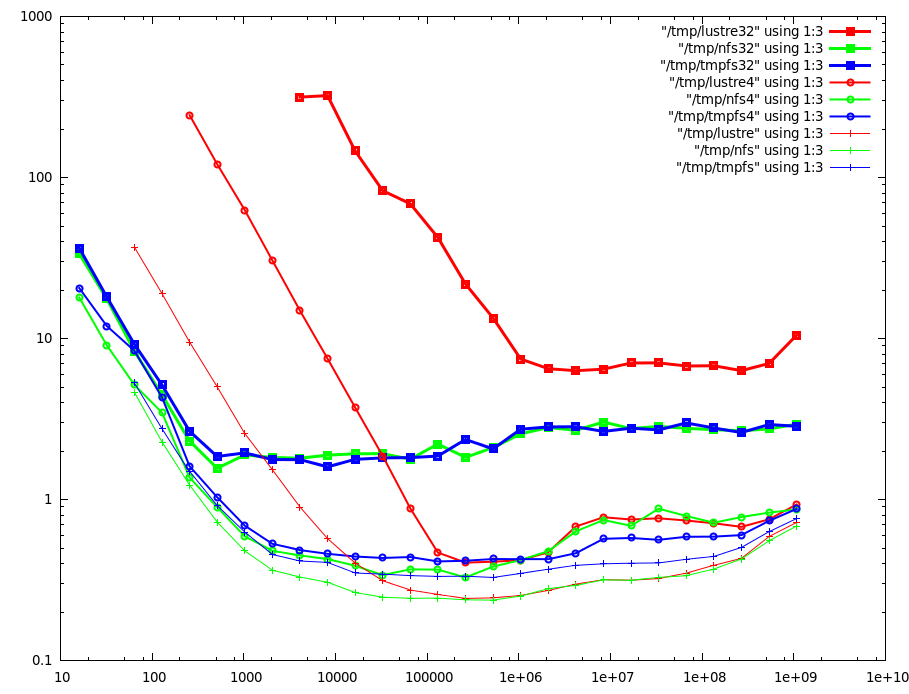

I then graphed these. Thin lines are 1 process running. The thicker ones are 4, and the thickest are 32 (also the labels lustre, lustre4 and lustre32 correspond as dot the crosses, circles and squares on the data points).
Naturally for any read there will be a per system-call overhead, so obviously tiny buffers for read calls are inefficient. This is evidently clear for all file systems.
Also there is clearly a per-byte overhead. Even reading from a file in cached memory, it takes time to copy from kernel space buffer cache to the user space buffer. This is a per-byte delay and will scale linearly will the data size.
These two timings combine to get the net speed of the while(read()) loops. Indeed we see this for NFS. Below 1k block size there is a decrease in speed as the block size decreases, indicating that the overhead of calling more system calls is the major bottleneck. At 10k and above the time is more or less constant, so the per-system call overhead has become insignificant. Inbetween 1k and 10k we see the gradual bend in the graph where real time is more evenly spread between memory copying and per-system call costs. Lustre single-threaded code demonstrates the same bend between 10k and 100k implying the per system-call cost is higher.
Now if we have 4 processes running we could expect the per-system call overhead to be the same on all processes, and much the same delay as we get with 1 or 32 processes running (more or less). This is visible in the NFS benchmark as the 32-process version still shows a linear decrease in performance for blocks below 1k (as for the single-process NFS stats) and the bend is "more or less" in the same place.
However Lustre shows a marked difference. As we have more and more simultaneous processes it reveals the location of the trade-off between per-system call and per-byte costs moving from ~10K through ~100k for 4 processes and up to ~1Mb for 32 processes. Why is this? Basically it indicates that the CPU overhead of each and every system call goes up as other processes are doing more system calls. The net effect is that even on moderate sized buffers (eg 10K) lustre becomes a couple orders of magnitude slower than NFS.
To my eyes that implies there is some contention between independent system calls, possibly a thread lock. I appreciate that coherency is HARD, so I wonder if there is some way we can provide hints to the lustre client to make things easier. Eg is it possible to set the immutable flag on a file to avoid this lock? Does opening in read-only mode help? Does having the file itself be read-only help?
James
|
|
Hi James,
Can you confirm what version of Lustre the clients and servers are running? Are you able to get the debug logs that Andreas requested while running these tests? I had to use the debug_daemon function in order to capture all the logs.
Thanks,
Kit
|
|
I have done my test on lustre 1.8.9 clients and 2.5.0 clients however James above would have only used lustre 1.8.9. I am rather deep in a set of lustre server upgrades right now so I will not be able to look at this until Tuesday unless it is critical before then ?
|
|
James, you are correct that there is per-syscall overhead in Lustre, and contention will indeed increase with multiple threads. Lustre has fully coherent locking between nodes, while NFS has no locking at all. That means if one node is writing to a file and another node is reading at the same time, or if two nodes are writing in on non-block-aligned boundaries, NFS does not guarantee anything about the state of your data at the end. NFS only ensures that local data is flushed when the file is closed, and another client can see this data when the file is opened afterward.
That said, I agree the client-side locking overhead is higher than it should be, and we are working to improve this for the 2.6 release. If you are able to test prototype code on a client node, it would be possible to see if the current performance patch series is showing improvement on your system. Most of the patches are already in the lustre-master branch in Git.
The last patch in this series that I'm aware of is:
http://review.whamcloud.com/7895
There are pre-built RPMs available at (click on blue circle for your arch distro combo):
http://build.whamcloud.com/job/lustre-reviews/20005/
|
|
This is a set of test results from a production node that has been taken out of one of our clusters, Note that the lustre client is mounted with localflock. We have an expectation that a number of processes all reading the same file should be quicker than a number of processes all reading different files as the file is in cache and we would not expect additional IO however there appears to be significant contention which we do not understand. I note that the block size that we read the file with makes a very significant difference. The problem was discovered with a program that read the file one character at a time. I will repeat the runs with a lustre 2.1 client pulled down from the lustre-reviews.
A little table which summarises the results.
| |
4M reads |
4K reads |
slow down |
| lustre reading multiple files concurrently |
4843 secs |
7202 secs |
1.5 |
| lustre reading a single file concurrently |
8470 secs |
131779 secs |
15.6 |
| tmpfs reading multiple files concurrently |
8019 secs |
6142 secs |
0.8 |
| tmpfs reading a single file concurrently |
8161 secs |
6131 secs |
0.8 |
|
|
Hi James,
Can you also try with a master branch client? If you have time, a 2.5.x client would also be interesting I think.
I'll try to test with different client versions as well.
Thanks,
Kit
|
|
This is from an old system that has only 16Gig of RAM, and only 8 cores. The size of each file was increased to 1G but the amount of parallelism reduced to 8.
| |
4M reads |
4K reads |
slow down |
| lustre reading multiple files concurrently |
868 secs |
1702 secs |
2.0 |
| lustre reading a single file concurrently |
988 secs |
4744 secs |
4.8 |
| tmpfs reading multiple files concurrently |
424 secs |
207 secs |
0.5 |
| tmpfs reading a single file concurrently |
537 secs |
191 secs |
0.4 |
4M read, lustre
root@isg-dev4:/root# bash test.sh
Creating source files........
Dropping cache
All threads reading the same file
Dropping cache
Reading the same file in a single thread
pTime taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
Pattern takes 867.87
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
File_A File_A File_A File_A File_A File_A File_A File_A
File_B File_B File_B File_B File_B File_B File_B File_B
File_C File_C File_C File_C File_C File_C File_C File_C
File_D File_D File_D File_D File_D File_D File_D File_D
File_E File_E File_E File_E File_E File_E File_E File_E
File_F File_F File_F File_F File_F File_F File_F File_F
File_G File_G File_G File_G File_G File_G File_G File_G
File_H File_H File_H File_H File_H File_H File_H File_H
Pattern takes 988.253
root@isg-dev4:/root#
4K read,lustre
root@isg-dev4:/root# bash test.sh
Creating source files........
Dropping cache
All threads reading the same file
Dropping cache
Reading the same file in a single thread
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
Pattern takes 1702.89
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
File_A File_A File_A File_A File_A File_A File_A File_A
File_B File_B File_B File_B File_B File_B File_B File_B
File_C File_C File_C File_C File_C File_C File_C File_C
File_D File_D File_D File_D File_D File_D File_D File_D
File_E File_E File_E File_E File_E File_E File_E File_E
File_F File_F File_F File_F File_F File_F File_F File_F
File_G File_G File_G File_G File_G File_G File_G File_G
File_H File_H File_H File_H File_H File_H File_H File_H
Pattern takes 4744.43
root@isg-dev4:/root#
4k reads, tmpfs
root@isg-dev4:/root# ./test.sh
Creating source files........
Dropping cache
All threads reading the same file
Dropping cache
Reading the same file in a single thread
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
Pattern takes 207.198
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
File_A File_A File_A File_A File_A File_A File_A File_A
File_B File_B File_B File_B File_B File_B File_B File_B
File_C File_C File_C File_C File_C File_C File_C File_C
File_D File_D File_D File_D File_D File_D File_D File_D
File_E File_E File_E File_E File_E File_E File_E File_E
File_F File_F File_F File_F File_F File_F File_F File_F
File_G File_G File_G File_G File_G File_G File_G File_G
File_H File_H File_H File_H File_H File_H File_H File_H
Pattern takes 191.962
root@isg-dev4:/root#
4M reads,tmpfs
root@isg-dev4:/root# ./test.sh
Creating source files........
Dropping cache
All threads reading the same file
Dropping cache
Reading the same file in a single thread
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
FIle_A FIle_B FIle_C FIle_D FIle_E FIle_F FIle_G FIle_H
Pattern takes 424.451
Time taken using read pattern
Core_A Core_B Core_C Core_D Core_E Core_F Core_G Core_H
File_A File_A File_A File_A File_A File_A File_A File_A
File_B File_B File_B File_B File_B File_B File_B File_B
File_C File_C File_C File_C File_C File_C File_C File_C
File_D File_D File_D File_D File_D File_D File_D File_D
File_E File_E File_E File_E File_E File_E File_E File_E
File_F File_F File_F File_F File_F File_F File_F File_F
File_G File_G File_G File_G File_G File_G File_G File_G
File_H File_H File_H File_H File_H File_H File_H File_H
Pattern takes 537.192
|
|
sorry I just saw this ticket today. I didn't read all the comments but the result mentioned at: "James Beal added a comment - 18/Nov/13 4:08 AM" seems quite reasonable to me.
For serial reading, only the first read is from the server; the following readings are from client cache so this is why they are super fast.
For parallel reading, things are different. Basically only one process issued the reading RPC and the other 19 processes are just waiting for the result of reading. For example, for the first 4M pages, the first process sends read RPC, then other processes try to read the same portion of data but find the pages are locked, so they will have to wait for the RPC to finish; the same thing happened to the 2nd 4M block, and so on.
|
|
But then wouldn't you expect the first serial process time to be about the same as the first parallel process time? You can see from the data that the first serial process completes in about 1/3 less time than any of the parallel processes.
|
|
Actually you can't expect that because there must be lot of page lock waiting for parallel processes, but things are much better due to read ahead for serial reading.
|
|
I note that the files are only being read and the file system is mounted with flocklocal, if we compare the ratio of speeds with tmpfs we see no effective difference with tmpfs compared to a slow down by a factor of 15.6 for lustre. Note we have applications that read files one character at a time. Our current work around involves a hack with a LD_PRELOAD which changes the reads in to memory mapped access.....
| |
4M reads |
4K reads |
slow down |
| lustre reading multiple files concurrently |
4843 secs |
7202 secs |
1.5 |
| lustre reading a single file concurrently |
8470 secs |
131779 secs |
15.6 |
| tmpfs reading multiple files concurrently |
8019 secs |
6142 secs |
0.8 |
| tmpfs reading a single file concurrently |
8161 secs |
6131 secs |
0.8 |
|
|
Unless there is a difference in what is being tested between the filesystems, or I'm misunderstanding your results, I find it interesting that Lustre concurrent 4MB reads (@4843s) is significantly faster than tmpfs 4MB reads (@~8019s)?  Even with 4k reads the total time for Lustre (@7202s) is less than the 4MB reads for tmpfs (@80192).
It is reasonable that there is overhead for Lustre with smaller read sizes and with concurrent IO compared to tmpfs. Lustre needs to do significantly more work per syscall than tmpfs. Even with a single client, there is locking overhead to maintain consistency (whether it is needed in this particular use or not), overhead in being able to potentially distribute the IO across multiple servers, etc., while tmpfs is as close to a "no-op" as a filesystem can be. That said, I agree the 15x slowdown for 4kB reads is excessive, and indicates there is too much contention/overhead in this part of the code.
In 1.8 there was a fast path implemented for small reads, since most of the pages were prefetched via readahead and already in the page cache, so only a minimal amount of work was needed before returning the page to userspace. I think Jinshan is working on a patch to improve this for 2.x as well.
|
|
Andreas, the numbers I pasted were for a 1.8.9 client..., I will try and see what a 2.5 client gives us.
| Lustre 1.8.9 |
4M reads |
4K reads |
slow down |
| lustre reading multiple files concurrently |
4843 secs |
7202 secs |
1.5 |
| lustre reading a single file concurrently |
8470 secs |
131779 secs |
15.6 |
| tmpfs reading multiple files concurrently |
8019 secs |
6142 secs |
0.8 |
| tmpfs reading a single file concurrently |
8161 secs |
6131 secs |
0.8 |
For all these reads the results should be "in the cache", I will try and do a run with 1 character reads which is what the program which showed this issue in the first place so it is apparent how painful the difference is.
|
|
The change between lustre 1.8.9 and lustre 2.5.0 looks very unpleasant....., ( The run on one character reads has been running over the weekend and it has not completed the first part yet ).... Given that we are moving to lustre 2.5 as our client on all our hosts very soon I am very wary of these numbers.
| |
4M reads |
4K reads |
slow down |
| lustre 1.8.9 reading multiple files concurrently |
4843 secs |
7202 secs |
1.5 |
| lustre 2.5.0 reading multiple files concurrently |
4578 secs |
55267 secs |
12.1 |
| lustre 1.8.9 reading a single file concurrently |
8470 secs |
131779 secs |
15.6 |
| lustre 2.5.0 reading a single file concurrently |
18500 secs |
2033260 secs |
110.0 |
| tmpfs reading multiple files concurrently |
8019 secs |
6142 secs |
0.8 |
| tmpfs reading a single file concurrently |
8161 secs |
6131 secs |
0.8 |
|
|
It seems bad. Let's start by investigating the single file concurrently read case. Can you please me the output of:
lctl get_param llite.*.read_ahead_stats
lctl get_param osc.*.rpc_stats
when running 1.8 and 2.5 clients specifically. Please remount the client before running the test case so that we can get accurate stats.
Also, can you please run it with single thread on both clients to check how much difference it is between them?
|
|
To complete the tests in a reasonable time I had to reduce the size of the file to 128MB
| |
4M reads |
4K reads |
slow down |
| lustre 1.8.9 reading a single file concurrently |
768 secs |
5373 secs |
7 |
| lustre 2.5.0 reading a single file concurrently |
1363 secs |
132559 secs |
97 |
| Slow down |
1.8 |
24.7 |
|
| |
4M reads |
4K reads |
slow down |
| lustre 1.8.9 reading a single file |
0.45 secs |
0.35 secs |
0.78 |
| lustre 2.5.0 reading a single file |
0.38 secs |
1.25 secs |
3.29 |
| Slow down |
0.85 |
3.57 |
|
The single client reads with a larger file
This is with a 4G files, which seems to follow the smaller file patten.
| |
4M reads |
4K reads |
slow down |
| lustre 1.8.9 reading a single file |
9.1 secs |
9.0 secs |
1.01 |
| lustre 2.5.0 reading a single file |
8.8 secs |
36.9 secs |
4.19 |
| Slow down |
0.97 |
4.1 |
|
|
|
The logs have been added as attachments, along with a new copy of the test script.
|
|
It looks like that per IO overhead of 2.x is much higher than 1.8. I did some experiments on my local machine and cl_lock contributes most of the overhead.
I hope we can solve this problem in the on going clio simplification project.
|
|
Hi Jinshan,
Can you elaborate on the clio simplification project and what sort of impact it might have on this IO pattern?
Thanks,
Kit
|
|
Clio project is funded by opensfs. We will simplify cl_lock implementation there. There will be performance tune phase at the end of the project, which will give us a chance to look at this problem.
I've ever set up an environment to check what's the major components to slow it down. And from what I have seen, cl_lock() contributes some overhead. Other components for example, cl_io data initialization, refresh layout, etc also contributes significant overhead.
I'm on a really tight schedule so I can't find any time to work on this recently.
|
|
Kit: for clarity, OpenSFS have funded a design phase for CLIO Simplification. Implementation and an associated performance analysis are not within scope for the CLIO Simplification design phase.
|
|
I'd like to share some result I've got so far.
First of all, I can reproduce the problem mentioned by James. So I worked out a patch, plus the prototype of cl_lock simplification, I have some results to share.
There are two type of read in my test:
1. 32 threads read 32 individual files;
2. 32 threads read the same file.
Also run the above test cases with memory in cache and not in cache specifically.
Here are the results(seconds):
| |
4M reads |
4K read |
Slow Down |
| ind + cache |
24.96 |
198.53 |
|
| par + cache |
20.65 |
111.02 |
|
| ind + no cache |
161.8 |
157.37 |
|
| par + no cache |
13.44 |
115.51 |
|
ind: threads read individual files
par: threads read the same file
cache: before reading, the data is already in memory
no cache: clean up memory cache before reading
Raw data is here:
and this is my test script:
|
|
Some of the patches are still in prototype phase, and I'll share the patches with you guys as soon as I can, so that you can try to reproduce what I have done.
Today is Chinese New Year. Happy Chinese New Year, everybody!
|
|
Happy New Year to you to
I completely understand about prototypes..., It would be good to have before and after numbers in the tables.
Thank you for looking at this for us.
|
|
Could you test with my patch http://review.whamcloud.com/#/c/9095?
This patch significantly reduce amount of context switches on ll_inode_size_lock(). So, overhead is gone and I have speedup in parallel dds on my machine.
|
|
I will build a new client tomorrow.
|
|
Here are the results before and after my patches is applied (in seconds):
| |
single |
parallel |
| master |
3.28 |
18.91 |
| master + patch |
2.84 |
5.80 |
| b1_8 |
0.62 |
11.54 |
single: single thread read single file
parallel: NR_CPUS threads read single file in parallel(8 threads in my case).
the file size is 1G and is already in cache before threads start; the read block size is 4k.
|
|
While we wait I found the following interesting.
http://lwn.net/Articles/590243/
Performance-oriented patches should, of course, always be accompanied by benchmark results. In this case, Waiman included a set of AIM7 benchmark results with his patch set (which did not include the pending-bit optimization). Some workloads regressed a little, but others shows improvements of 1-2% — a good result for a low-level locking improvement. The disk benchmark runs, however, improved by as much as 116%; that benchmark suffers from especially strong contention for locks in the virtual filesystem layer and ext4 filesystem code.
|
|
Hi Jinshan,
Any updates on the request made by James. We are looking for the new patch for the performance issues to try out, based on the above comment.
Thank You,
Manish
|
|
I came up with a solution for this issue and the initial testing result is exciting.
The test case I used is based on the test cases shared by sanger, please check below:
#!/bin/bash
nr_cpus=$(grep -c ^processor /proc/cpuinfo)
for CACHE in no yes; do
for BS in 4k 1M; do
echo "===== cache: $CACHE, block size: $BS ====="
[ "$CACHE" = "yes" ] && { dd if=/mnt/lustre/testfile bs=1M of=/dev/null > /dev/null 2>&1; }
[ "$CACHE" = "no" ] && { echo 3 > /proc/sys/vm/drop_caches; }
echo -n " single read: "
dd if=/mnt/lustre/testfile bs=$BS of=/dev/null 2>&1 |grep copied |awk -F, '{print $3}'
[ "$CACHE" = "no" ] && { echo 3 > /proc/sys/vm/drop_caches; }
echo -n " parallel read: "
for i in `seq -w 1 ${nr_cpus}`; do
dd if=/mnt/lustre/testfile bs=$BS of=/dev/null > results/${i}_out 2>&1 &
done
wait
grep copied results/1_out | awk -F, '{print $3}'
done
done
The test file is 2G in size so that it can fit in memory for cache enabled testing. I applied the patches and compare the test results w/ and w/o patches.
The result w/ my patches:
The test w/o my patches:
The small IO performance improved significantly. I'm still doing some fine tune for the patches and I will release them as soon as I can so that you can do some evaluation.
|
|
Bobi Jam (bobijam@hotmail.com) uploaded a new patch: http://review.whamcloud.com/20574
Subject: LU-4257 clio: replace semaphore with mutex
Project: fs/lustre-release
Branch: b2_4
Current Patch Set: 1
Commit: 3e1cbe0b81eaee6e509c825455669c89df157915
|
|
Oleg Drokin (oleg.drokin@intel.com) merged in patch http://review.whamcloud.com/20254/
Subject: LU-4257 obdclass: Get rid of cl_env hash table
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 45332712783a4756bf5930d6bd5f697bbc27acdb
|
|
Oleg Drokin (oleg.drokin@intel.com) merged in patch http://review.whamcloud.com/20256/
Subject: LU-4257 llite: fix up iov_iter implementation
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 1101120d3258509fa74f952cd8664bfdc17bd97d
|
|
Oleg Drokin (oleg.drokin@intel.com) merged in patch http://review.whamcloud.com/20255/
Subject: LU-4257 llite: fast read implementation
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 172048eaefa834e310e6a0fa37e506579f4079df
|
|
Landed for 2.9
|
|
This patch introduced an intermittent test failure LU-8248 in sanity.sh test_248.
|
|
Andreas Dilger (andreas.dilger@intel.com) merged in patch http://review.whamcloud.com/20647/
Subject: LU-4257 test: Correct error_ignore message
Project: fs/lustre-release
Branch: master
Current Patch Set:
Commit: 5f03bf91e68e925149f2331a44d1e4ad858b8006
|
Generated at Sat Feb 10 01:41:05 UTC 2024 using Jira 9.4.14#940014-sha1:734e6822bbf0d45eff9af51f82432957f73aa32c.
debug_file.out.gz
lustre_1.8.9
